With the new $.75 a watt rebate, is now going to make the average solar system highly affordable and take up to years off the return of investment. The $.75 a Watt rebate is working out to be about 30% of the system price being forwarded back to the customer once the system is to be installed.
Alberta solar rebates are proud supporters of of new an innovative Technology in the landscape of PV solar
Cyboinverter On Grid micro inverters are a new groundbreaking product to Canada
Finally providing a on-grid/off-grid inverter that senses the electrical-grid
The advantage of the A model grid tie Cyboinverters is that they are MFA Control. This means that each individual CyboInverter has its own individual micro processor and is capable of communication, and therefore being a "Smart Micro inverter" or "Smart mini inverter"
A 4-channel CyboInverter can connect to 4 solar panels. Each CyboInverter’s input channel has its own control and maximum power point tracking (MPPT) mechanism so that solar power harvest is maximized. In this regard, lower volume batteries and a smaller battery charger can be used to provide adequate performance for the application.
Solar charge controllers claim that they have MPPT. When putting multiple solar panels together in series and/or parallel, the I-V (Current and Voltage) curve of the DC source will most likely have no single MPP (Maximum Power Point). Thus, the claimed Maximum Power Point Tracking (MPPT) in solar charge controllers can get stuck in a "local maximum power point" and unable to harvest the available solar energy.
Because CyboInverters has MPPT for each solar panel, the partial shading problem is eliminated. In other words, one partially shaded panel will not affect the performance of other panels. This is an important feature that allows the off-grid CyboInverter to deliver AC power to the load reliably and smoothly.
Key points:
Alberta solar rebates are proud supporters of of new an innovative Technology in the landscape of PV solar
Cyboinverter On Grid micro inverters are a new groundbreaking product to Canada
Finally providing a on-grid/off-grid inverter that senses the electrical-grid
The advantage of the A model grid tie Cyboinverters is that they are MFA Control. This means that each individual CyboInverter has its own individual micro processor and is capable of communication, and therefore being a "Smart Micro inverter" or "Smart mini inverter"
A 4-channel CyboInverter can connect to 4 solar panels. Each CyboInverter’s input channel has its own control and maximum power point tracking (MPPT) mechanism so that solar power harvest is maximized. In this regard, lower volume batteries and a smaller battery charger can be used to provide adequate performance for the application.
Solar charge controllers claim that they have MPPT. When putting multiple solar panels together in series and/or parallel, the I-V (Current and Voltage) curve of the DC source will most likely have no single MPP (Maximum Power Point). Thus, the claimed Maximum Power Point Tracking (MPPT) in solar charge controllers can get stuck in a "local maximum power point" and unable to harvest the available solar energy.
Because CyboInverters has MPPT for each solar panel, the partial shading problem is eliminated. In other words, one partially shaded panel will not affect the performance of other panels. This is an important feature that allows the off-grid CyboInverter to deliver AC power to the load reliably and smoothly.
Key points:
- Smart and Scalable
- Four DC Input Channels
- Solar or Wind Input
- MPPT for Each Solar Panel
- Low Per Watt Price
- Outdoor or Indoor Mounting
- High Efficiency and Long Life
- Produces AC at Low Sunlight
- Powerline Communication & Monitoring with CyboBridge
- Made in U.S.A

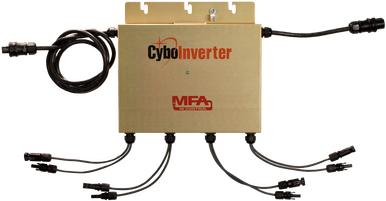

Grid-Interactive CyboInverter
Each CyboInverter has 4 input channels that can connect to four 250W-320W solar panels and produce 1150W AC peak power to the grid. Each input channel has its own MPPT to eliminate partial shading problems. Multiple CyboInverters can daisy-chain so the system is truly "plug and play". Because there is no high-voltage DC, the system is intrinsically safe and easy to install, making CyboInverters ideal for residential and commercial roof-top installations. CyboBridge is a communication gateway and router device that supports powerline communications with CyboInverters, WiFi to communicate with smart phones, and CyboPower on the Cloud for real-time monitoring.
Each CyboInverter has 4 input channels that can connect to four 250W-320W solar panels and produce 1150W AC peak power to the grid. Each input channel has its own MPPT to eliminate partial shading problems. Multiple CyboInverters can daisy-chain so the system is truly "plug and play". Because there is no high-voltage DC, the system is intrinsically safe and easy to install, making CyboInverters ideal for residential and commercial roof-top installations. CyboBridge is a communication gateway and router device that supports powerline communications with CyboInverters, WiFi to communicate with smart phones, and CyboPower on the Cloud for real-time monitoring.

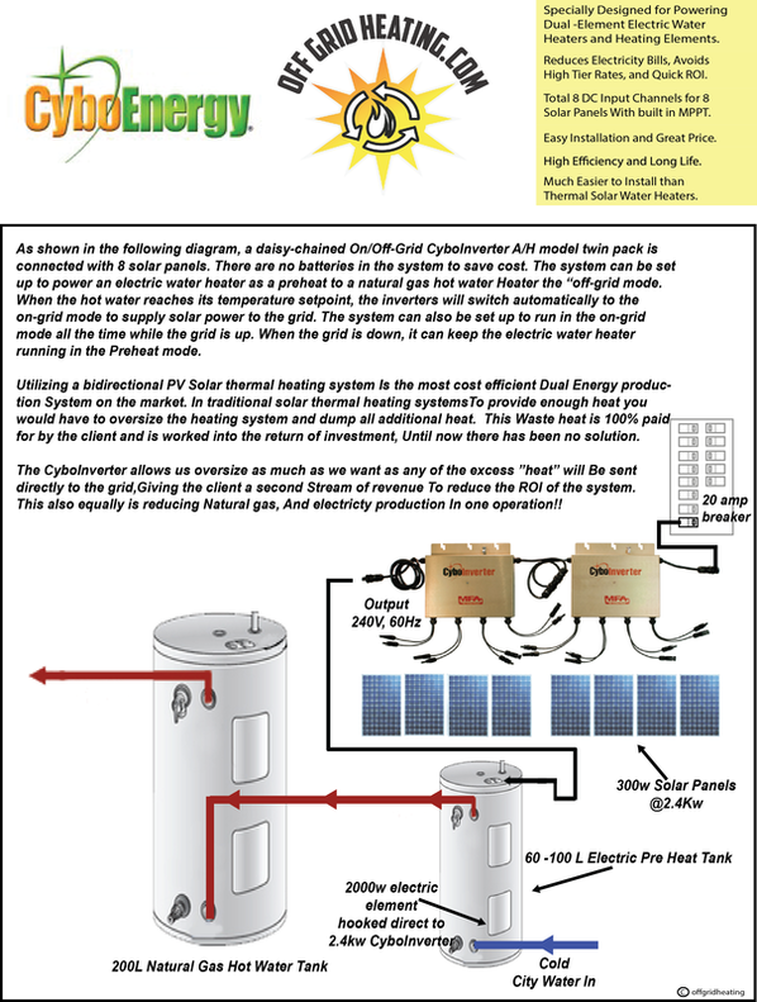

Hybrid PV Electric Solar Hot Water Heating
One of the newest landscapes in photovoltaics is PV solar heating, the CyboInverter A/H inverter maximizes the functionality between an electric hot water tank (as a preheat tank) and your facilities grid.
We're currently finding in today's market Place is most clients are phoning to get their electrical utilities bills that zero with solar, though they're generally forgetting completely about they're heating / natural gas bills. On average the natural gas bills that we are seeing Match the electrical utilities.
By integrating A PV based heating system that dumps to the grid when the heating system is not being used allows us to go after two utilities within one autonomous system.
The addition of the PV-based heating system is not expensive when adding a PV based System as all that is required is a different model of inverter,electric preheat tank and very basic plumbing.
On larger systems we can use a hybrid system, and on smaller domestic based Systems pre heat tanks.
We're currently finding in today's market Place is most clients are phoning to get their electrical utilities bills that zero with solar, though they're generally forgetting completely about they're heating / natural gas bills. On average the natural gas bills that we are seeing Match the electrical utilities.
By integrating A PV based heating system that dumps to the grid when the heating system is not being used allows us to go after two utilities within one autonomous system.
The addition of the PV-based heating system is not expensive when adding a PV based System as all that is required is a different model of inverter,electric preheat tank and very basic plumbing.
On larger systems we can use a hybrid system, and on smaller domestic based Systems pre heat tanks.
